TS AVS05 Visibility Sensor visibility meter
1.Integrated structure, a single device collects visibility simultaneously, can add rain, snow, and fog weather phenomenon measurement modules, and reduce the cost of deploying multiple devices.
2.The window lenses of the transmitter and receiver have been specially treated with anti-dust and anti-mildew coating, which is not easy to accumulate dust and also reduces the chance of salt spray and oil pollution.
3.Both the communication interface and the power interface have lightning protection design and anti-static protection
4.Power consumption ≤1w; Solar power or AC power available; Can be installed on a mast or tripod with a diameter of 60~75mm.
Multiparameter weather sensor Product description

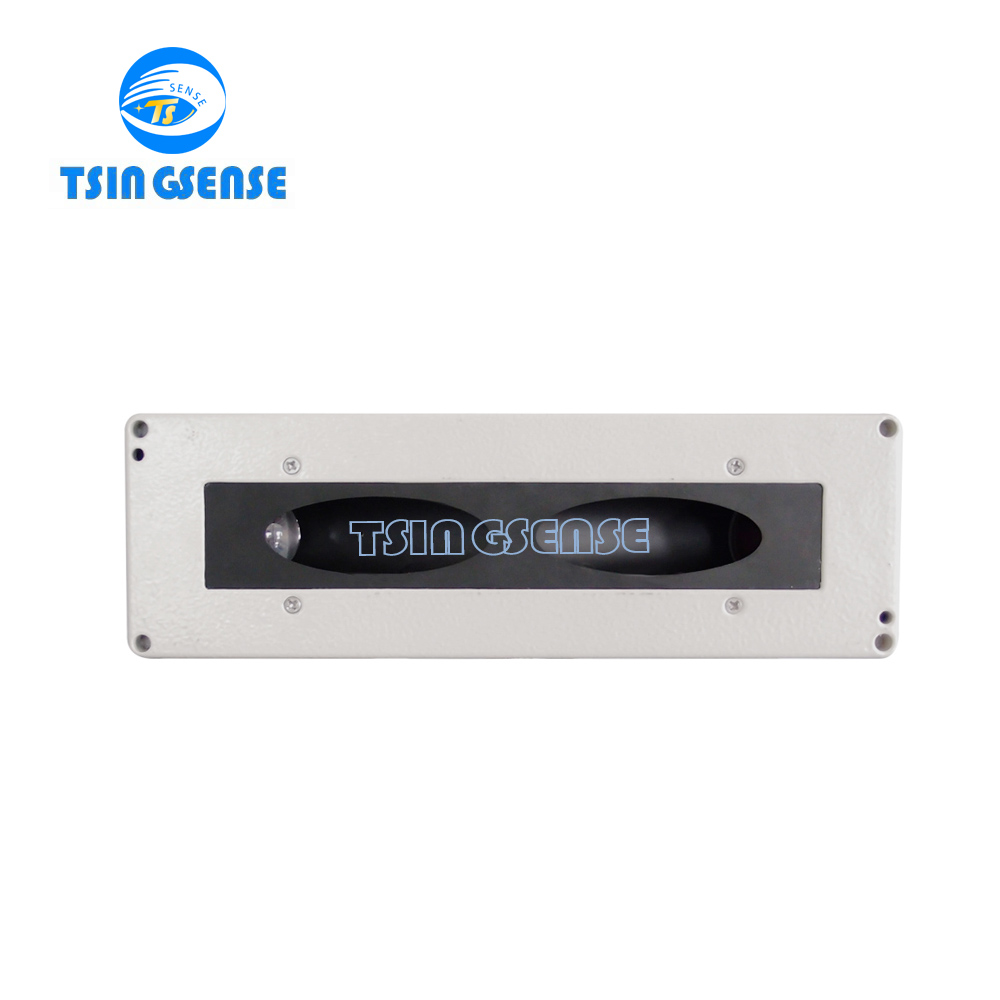

TS AVS05 micro visibility sensor is a compact visibility measuring instrument developed by our company based on the principle of aerosol forward scattering. It has the characteristics of small size, light weight and easy to move. The device adopts RS485 output and has two communication protocols: Modbus and ASCII code. It is widely used in smart transportation, meteorological monitoring, maritime, environmental protection, scientific research and other industries.

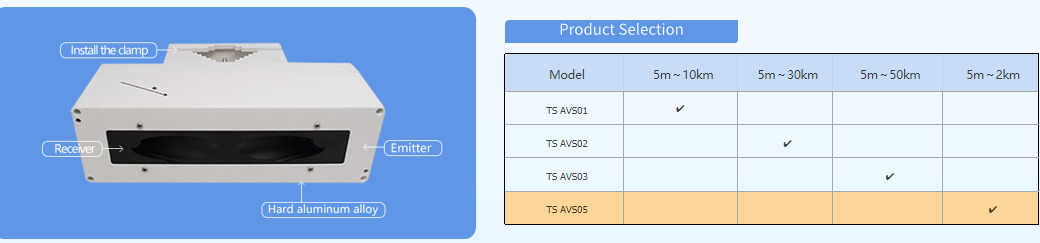

Product Selection
Technical Parameters
| Measuring range | 5m～2km |
Measurement parameters | Measurement accuracy | ≤500m (error ±5%); 500m～2km (error ±10%) |
Instrument consistency | ≤±4% | |
Data update interval | 15 seconds to 600 seconds optional | |
Power supply parameters | Input Power | 12~24VDC |
Power consumption | ＜1W | |
Mechanical parameters | size(L*W*H) | 250mm × 80mm × 142mm |
weight | ＜2kg | |
Material | Hard alloy aluminum, external surface sprayed | |
Environmental parameters | Operating temperature | -40℃～+80℃ |
Operating humidity | 0～100% | |
MTBF | 1.5 x 50000 hours |

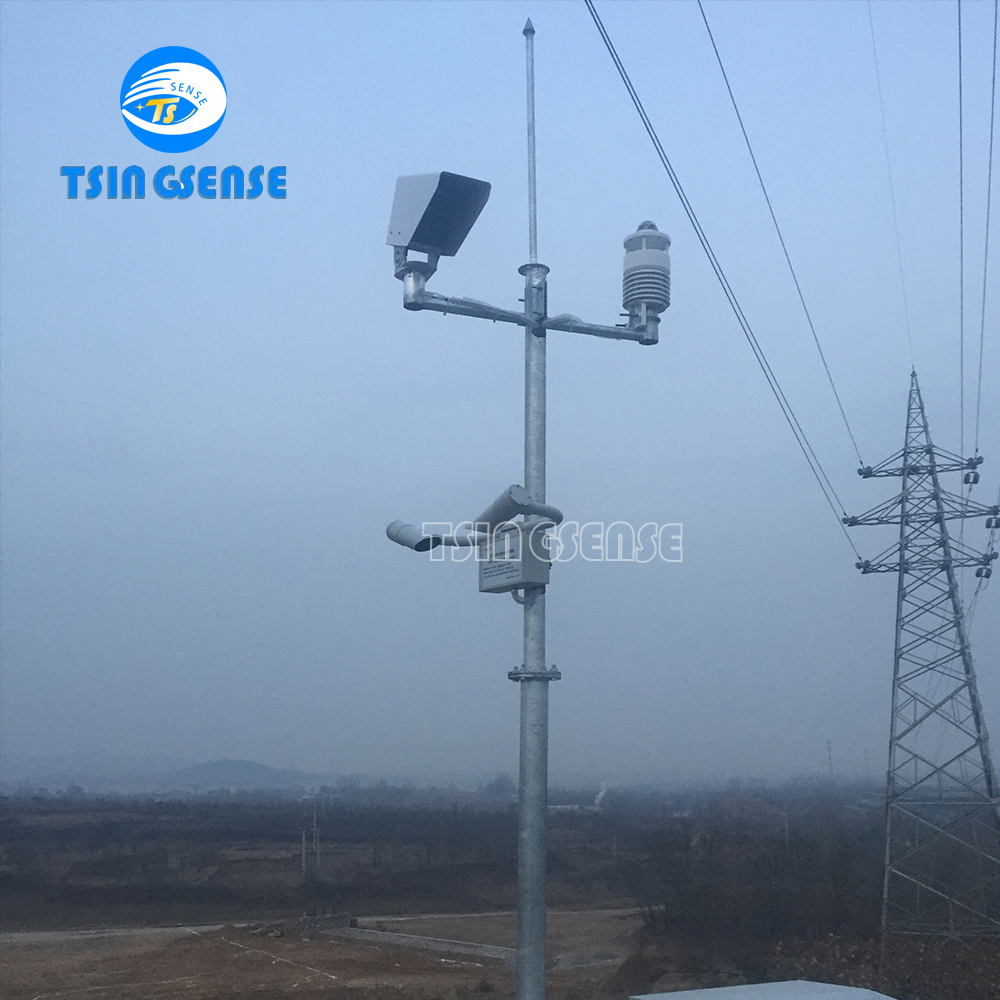

Application Scenarios
FAQ
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends’ visits.
