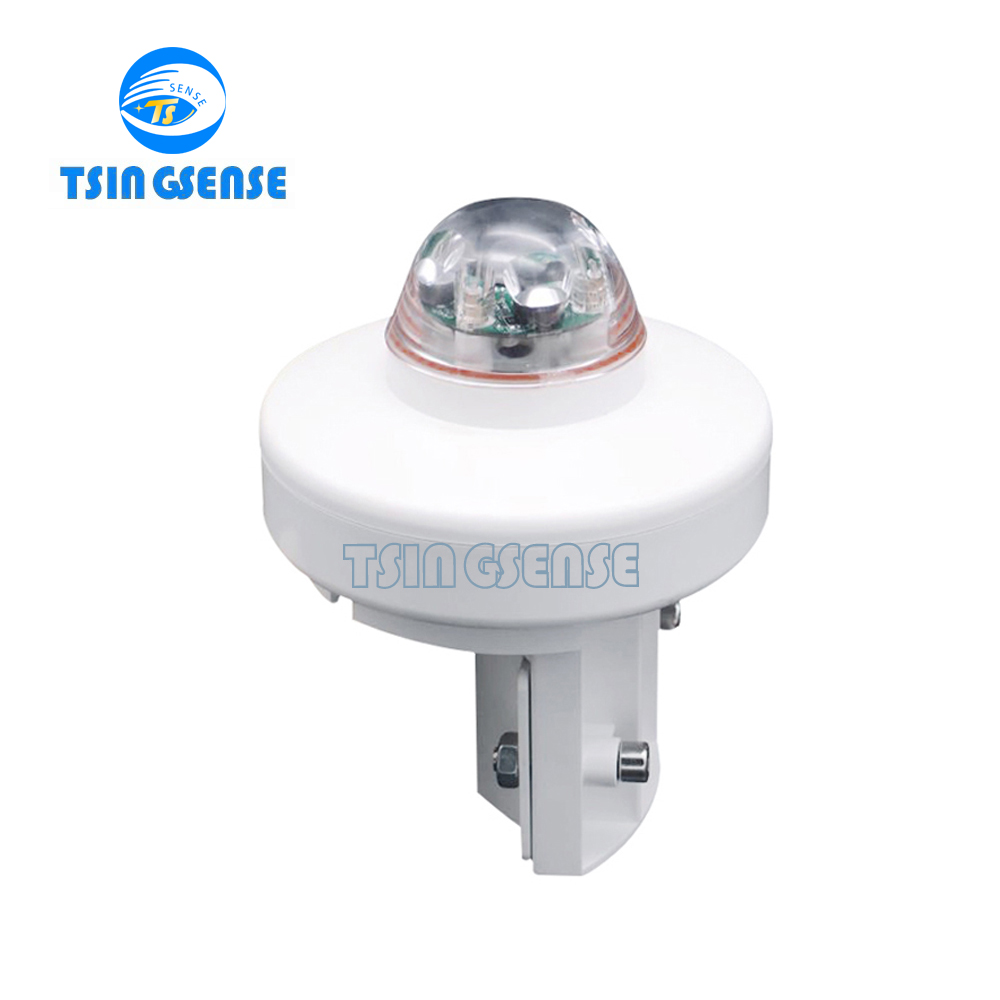

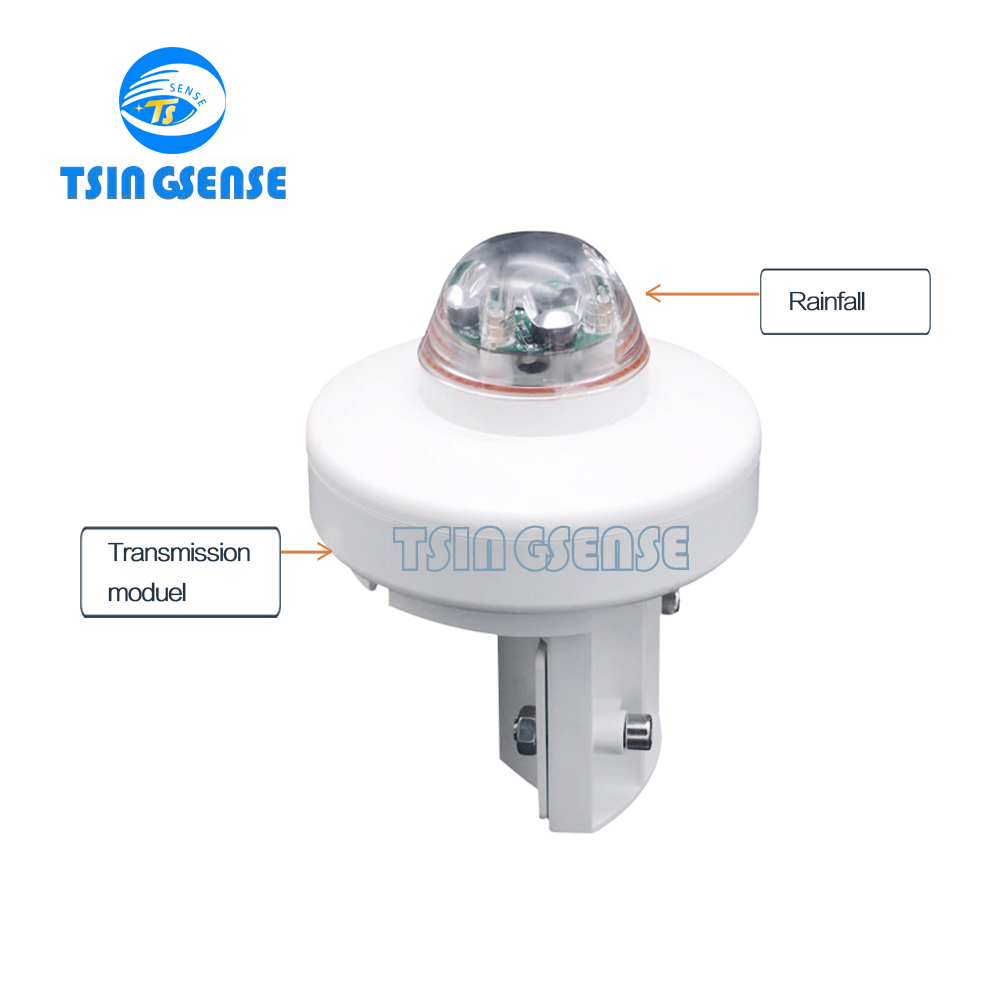

RS100H Rain Sensor RS485 output Applied to hydrological stations
1.Integrated structure, single device synchronously collects rainfall monitoring; supports -40℃~+80℃ wide temperature measurement, 0～24mm/min rainfall measurement range, adapts to extreme climate scenarios. Optional solar energy, mains electricity; can be installed on a mast with a diameter of 60~75mmφ, tripod.
2.Transmission mode: RS485, RS232, SDI12, 4-20mA, 0-5V optional; support ASCII code and Modbus protocol 3.Modular design, customized parameter combination on demand 4.IP66 protective shell, service life 5 years
Multiparameter weather sensor Product description
TS RS-100H optical rainfall sensor/rain sensor is an upgraded version of RS-100, with an RS485 communication interface, supporting ASCII code and MODBUS protocol. A GPRS wireless module can also be added according to customer needs. This product has a built-in data acquisition motherboard, and rainfall data can be collected without configuring a data collector.Easy to install, flexible and convenient to use. Widely used in meteorological stations, hydrological stations, national defense, agriculture, etc.
Technical Parameters
Rain Sensing Diameter | 7CM |
Accuracy | <±5% |
Output Interface | RS485 |
Sleep current | 3mA@12VDC |
Resolution | Standard 0.1mm |
Rain Sensing Resolution | 0.01mm |
Enclosure protection grade | IP66 |
Maximum instantaneous rainfall | 0.4mm/s |
Operating temperature | -40℃ ～ 85℃ |
Operating humidity | 0-99%RH，No condensation |
Supply voltage | 12V～30V，Standard voltage:12V |
Rated Power | Less than 0.3W, current less than 20mA when powered by 12V (typical value) |
Weight | 0.45KG |
Size | 140mm x 140mm x 175mm |
Application Scenarios
FAQ
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends’ visits.
