WES900 Outdoor Air Quality Monitoring Sensor

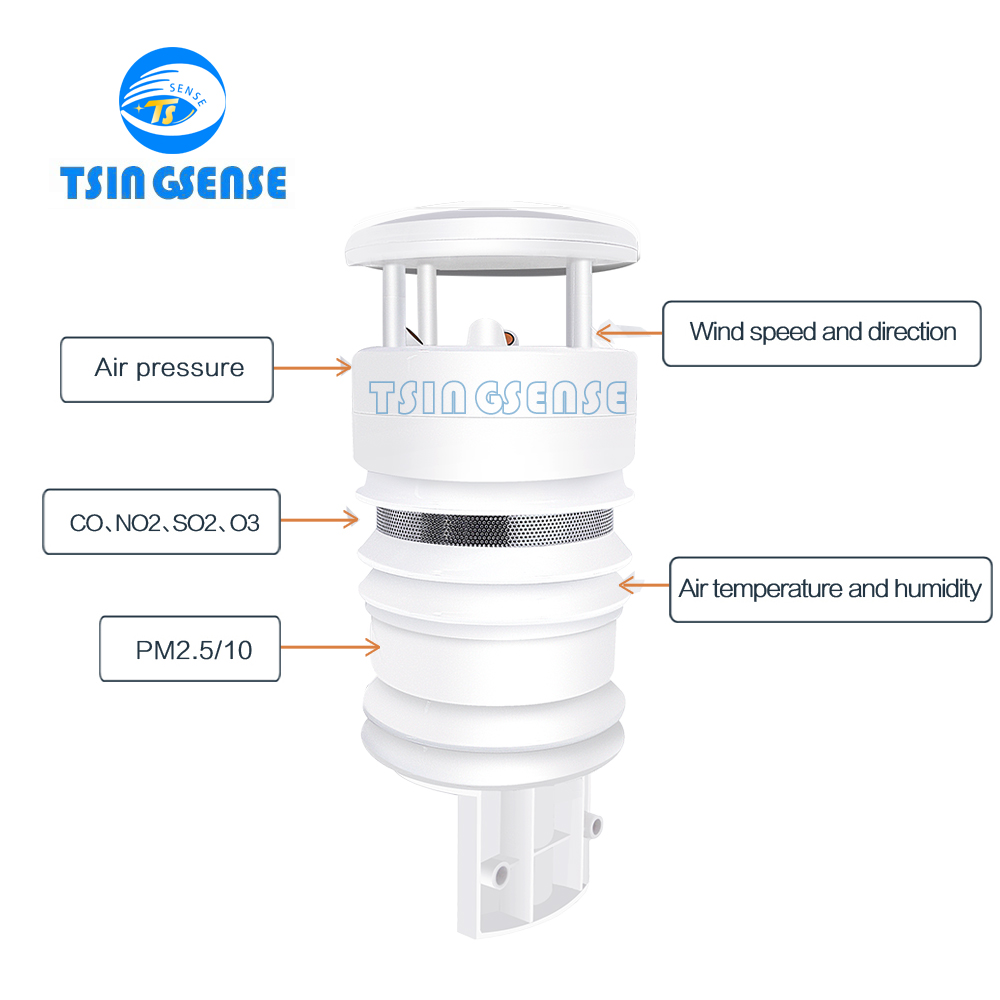

1.Integrated structure, a single device synchronously collects temperature, humidity, air pressure, wind speed, wind direction, PM2.5/10, SO2, NO2, O3, CO and other parameters, reducing the cost of deploying multiple devices;Support -20℃~+80℃ wide temperature measurement, 0~75m/s strong wind monitoring, adapt to extreme climate scenarios
2.Power consumption ≤ 0.4w; Solar power or AC power available; Can be installed on a mast or tripod with a diameter of 60~75mmφ.
Multiparameter weather sensor Product description
TS WES900 multi-parameter environmental grid monitoring station is a specialized small instrument used for urban grid environmental monitoring. It can monitor environmental factors such as temperature, humidity, wind speed, wind direction, air pressure, PM2.5/10, SO2, NO2, O3, CO, etc.The system adopts modules for flexible configuration, small size, low cost, and is suitable for gridding, intensive and refined layout requirements.
Product Selection
Technical Parameters
Parameter | Detection range | Detection limit | Measuring principle | |
NO2 | 0~20ppm | 15ppb | Electrochemistry | |
SO2 | 0~100ppm | 5ppb | Electrochemistry | |
CO | 0~1000ppm | 4ppb | Electrochemistry | |
O3 | 0～20ppm | 15ppb | Electrochemistry | |
Parameter | Measuring range | Resolution | Accuracy | Measuring principle |
Air Temperature | -40℃～+80℃ | 0.1℃ | ±0.2℃ | Platinum resistance |
Air Humidity | 0%～100%Rh | 0.1%Rh | ±2%Rh | Capacitance |
Air pressure | 10～1300hPa | 0.1hPa | ±0.3hPa | Silicon piezoresistive |
wind direction | 0～360° | 1° | ±3° | Ultrasonic |
Wind speed | 0～75m/s | 0.1m/s | ±0.3m/s 或3% | Ultrasonic |
PM2.5/10 | 0~1000μg/m3 | 0.3μg/m3 | ±10μg/m3 or 15% | Laser scattering |
Reliability | Mean time between failures (MTBF), design value 85000h | Operating voltage | 9V～30VDC |
Data Protocol | Support ASCII code and Modbus protocol | Operating temperature | -20℃～+80℃ |
Output | RS485, RS232, SDI12, 4-20mA, 0-5V optional | Operating humidity | 0～100%Rh |
Size | 140mm*140mm*358mm | Weight | 1.1kg |
Application Scenarios
FAQ
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends’ visits.
