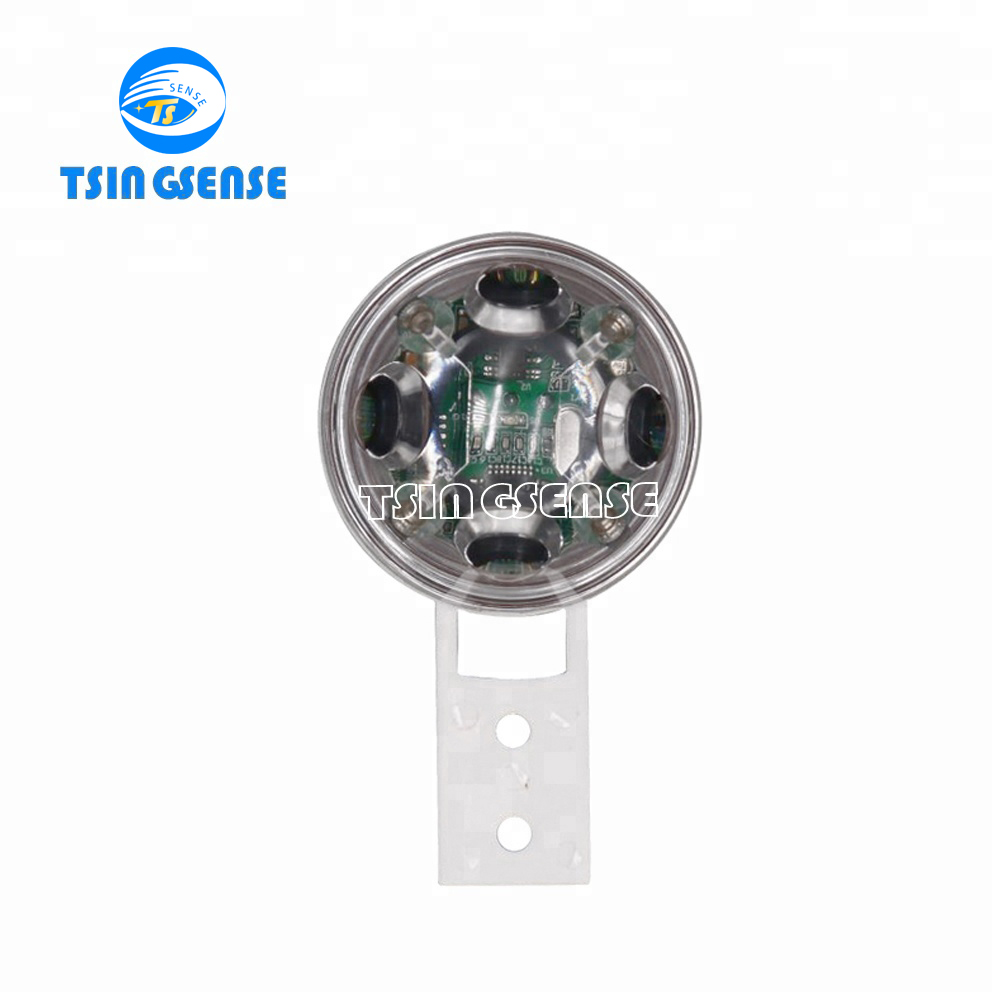

RS-100 Optical Rain Module Sensor
1.Integrated structure, single device synchronously collects rainfall monitoring; supports -40℃~+80℃ wide temperature measurement, 0～24mm/min rainfall measurement range, adapts to extreme climate scenarios. Optional solar energy, mains electricity; can be installed on a mast with a diameter of 60~75mmφ, tripod.
2.Transmission mode: RS485, RS232, SDI12, 4-20mA, 0-5V optional; support ASCII code and Modbus protocol
3.Modular design, customized parameter combination on demand
4.IP66 protective shell, service life 5 years
Multiparameter weather sensor Product description
TS RS-100 optical rain sensor is a miniature sensor for measuring rainfall. It uses optical sensing principle to measure rainfall. It has multiple built-in optical probes and uses reliable telemetry algorithms to ensure rainfall monitoring accuracy and stability. Different from traditional mechanical sensors, optical rain sensors are smaller, more sensitive, more reliable, smarter and easier to maintain. It supports power-on calibration, relay switch quantity, 5V pulse and UART output.
Technical Parameters
|
Rain Sensing Diameter |
7CM |
|
Accuracy |
Relay/Pulse/UART, expandable RS485/RS232/GPRS |
|
Output Interface |
Less than 0.3W, current less than 20mA when powered by 12V |
|
Sleep current |
12V/24V |
|
Resolution |
Standard 0.1mm |
|
Rain Sensing Resolution |
0.4mm/s |
|
Operating temperature |
-40℃ ～ 85℃ |
|
Operating humidity |
0-99%RH，No condensation |
|
Weight |
0.107KG |
|
Size |
70mm x 72mm x 120mm |

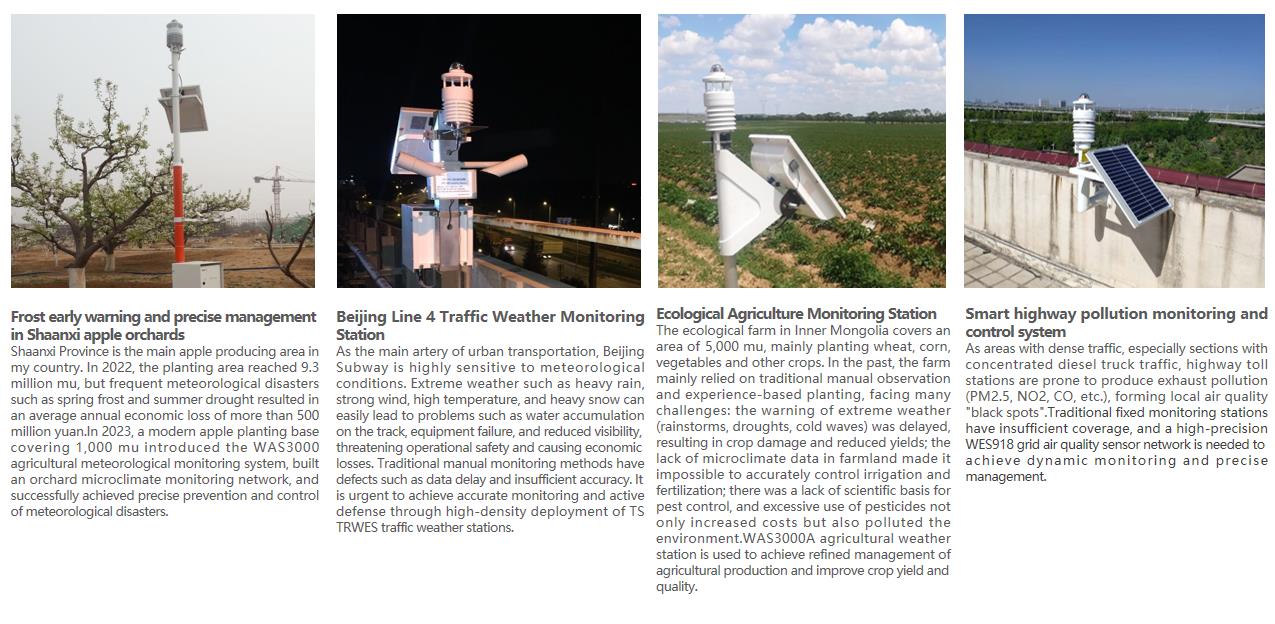

Application Scenarios
FAQ
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends’ visits.
