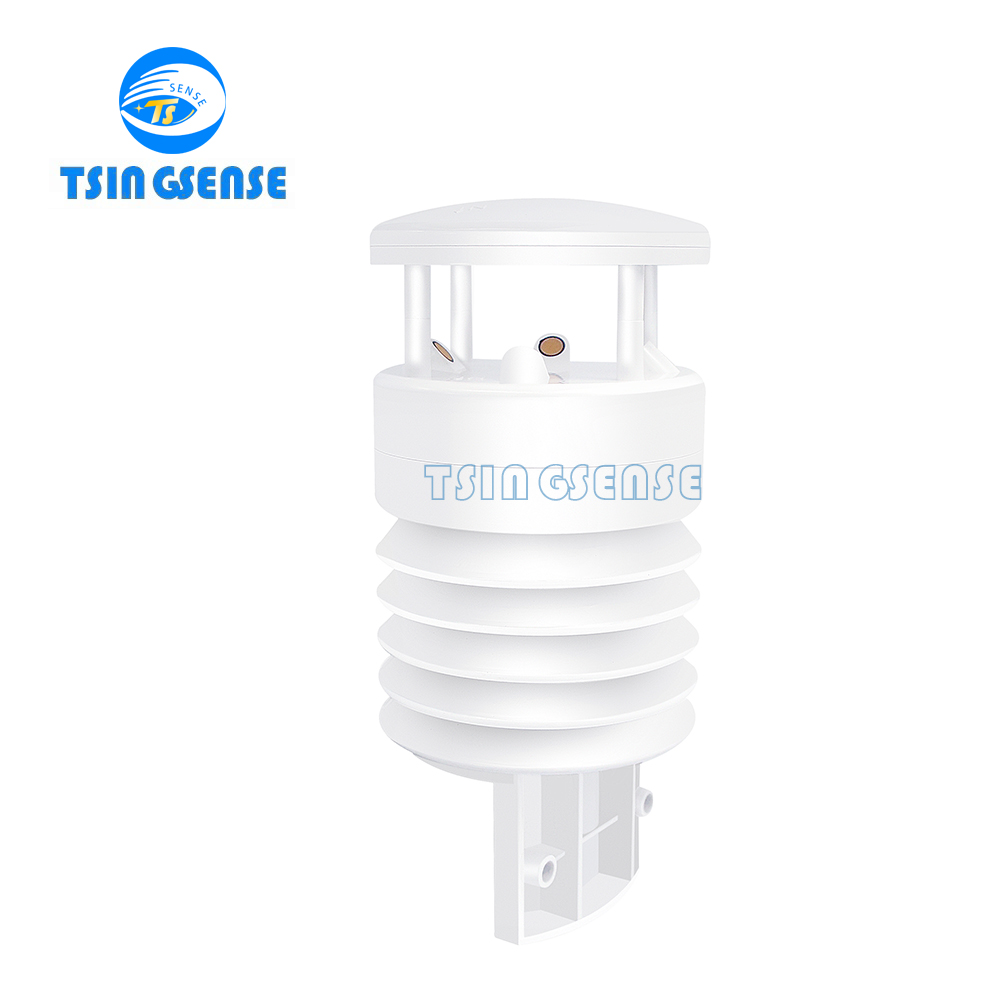

WTS500 Multifunctional Weather Sensor
1.Integrated structure, a single device synchronously collects parameters such as temperature, humidity, air pressure, wind speed, wind direction, rainfall, etc., reducing the cost of deploying multiple devices; Supports -40℃~+80℃ wide temperature measurement, 0~75m/s strong wind monitoring and 0~24mm/min rainfall measurement range, adapting to extreme climate scenarios
2.Power consumption ≤ 0.4w; Solar power or AC power available; Can be installed on masts or tripods with a diameter of 60~75mm
TS WTS500 integrated meteorological sensor is a professional-grade sensor independently developed by our company to measure multiple meteorological elements. It can simultaneously measure five meteorological elements including temperature, humidity, air pressure, wind direction, wind speed index. It has the advantages of high accuracy, fast response time, strong anti-interference ability, and serial port output.Users can make measurements directly through the PC or external instruments.
Product Selection
Technical Parameters
Parameter | Measuring range | Resolution | Accuracy | Measuring principle |
Air Temperature | -40℃～+80℃ | 0.1℃ | ±0.2℃ | Platinum resistance |
Air Humidity | 0%～100%Rh | 0.1%Rh | ±2%Rh | Capacitance |
Air pressure | 10～1300hPa | 0.1hPa | ±0.3hPa | Silicon piezoresistive |
wind direction | 0～360° | 1° | ±3° | Ultrasonic |
Wind speed | 0～75m/s | 0.1m/s | ±0.3m/s or 3% | Ultrasonic |
Reliability | Mean time between failures (MTBF), design value 85000h | Operating voltage | 9V～30VDC | |
Data Protocol | Support ASCII code and Modbus protocol | Operating temperature | -40℃～+80℃ | |
Output | RS485, RS232, SDI12, 4-20mA, 0-5V optional | Operating humidity | 0～100%Rh | |
Size | 140mm*140mm*305mm | Weight | 1.0kg | |
Packing List
1 sensor set
1 3.5m cable
1 instruction manual
1 certificate and warranty
1 packing list
Application Scenarios
FAQ
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends’ visits.
