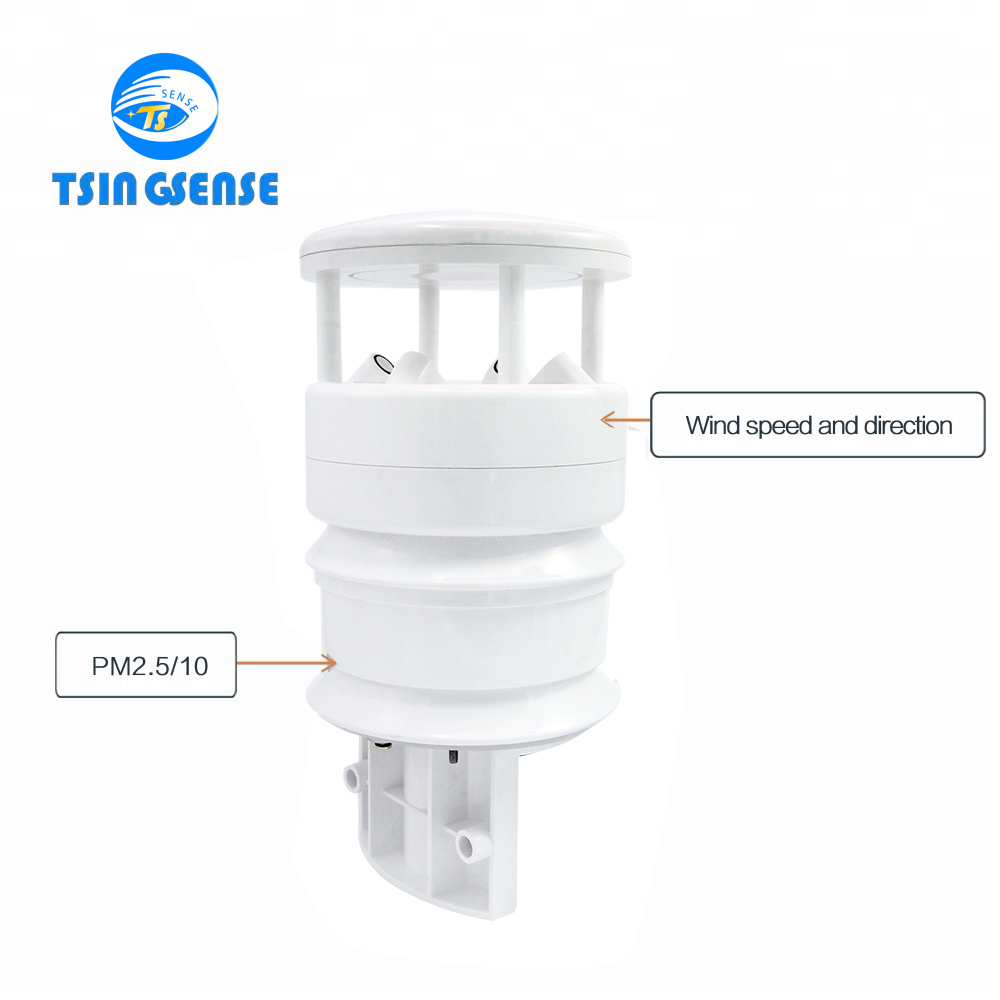

WDS202 Dust monitoring sensor PM2.5 PM10
1.Integrated structure, a single device synchronously collects parameters such as wind speed, wind direction, PM2.5/10, etc., reducing the cost of deploying multiple devices; supports -40℃~+80℃ wide temperature measurement, 0~75m/s strong wind monitoring, adapting to extreme climate scenarios
2.Power consumption ≤ 0.4w; Solar power or AC power available; Can be installed on a hollow mast or tripod with a diameter of 60mm-75mmφ
Multiparameter weather sensor Product description
TS WDS202 integrated dust monitoring sensor is a miniature instrument mainly used in smart cities, smart lamp poles, and smart construction sites to monitor meteorological environmental elements.The meteorological elements that can be monitored include wind speed, wind direction, etc., and the environmental elements include PM2.5, PM10, etc.The equipment system is modular in design, and users can flexibly configure it according to their needs. It can integrate solar power supply system, LED display screen and GPRS wireless transmission module, etc。

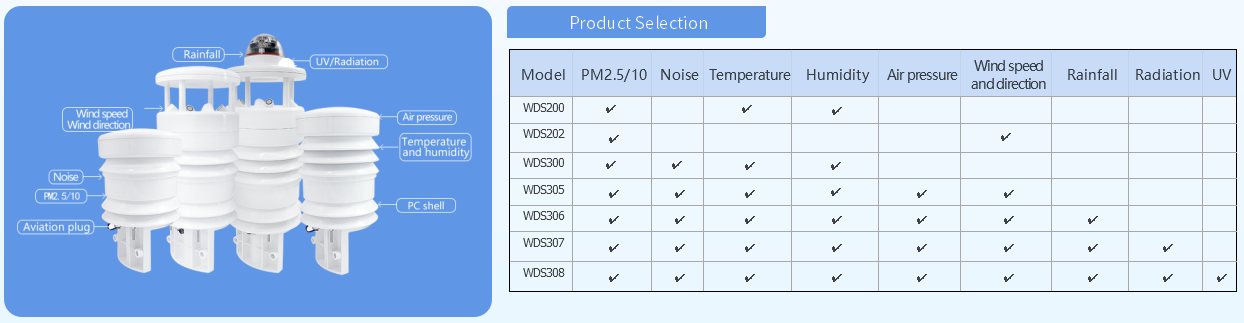

Product Selection
Technical Parameters
Parameter | Measuring range | Resolution | Accuracy | Measuring principle |
wind direction | 0～360° | 1° | ±3° | Ultrasonic |
Wind speed | 0～75m/s | 0.1m/s | ±0.3m/s or 3% | Ultrasonic |
PM2.5/10 | 0~1000μg/m3 | 0.3μg/m3 | ±10μg/m3 or 15% | Laser scattering |
Reliability | Mean time between failures (MTBF), design value 85000h | Operating voltage | 9V～30VDC | |
Data Protocol | Support ASCII code and Modbus protocol | Operating temperature
| -40℃～+80℃ | |
Output | RS485, RS232, SDI12, 4-20mA, 0-5V optional | Operating humidity | 0～100%Rh | |
Size | 140mm*140mm*314mm | Weight | 0.8kg | |

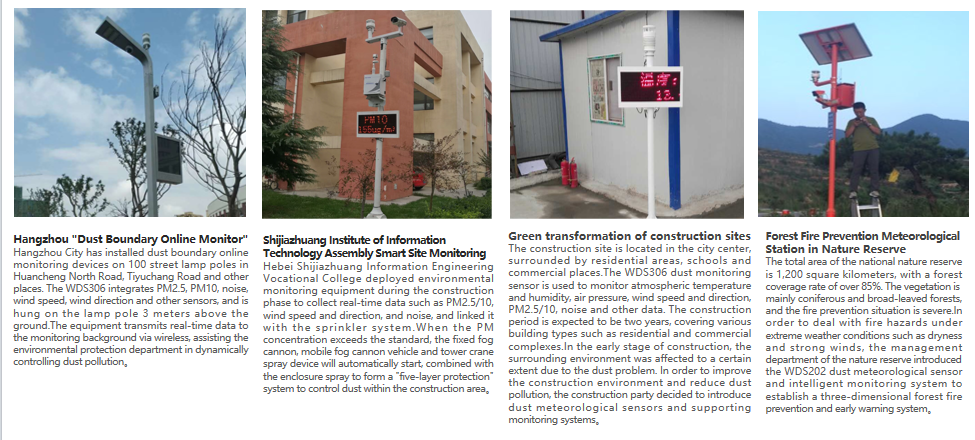

Application Scenarios
FAQ
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends’ visits.
